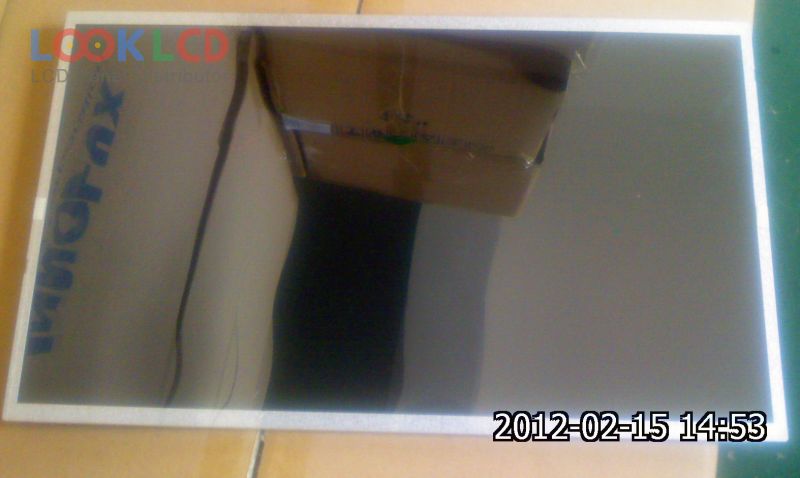

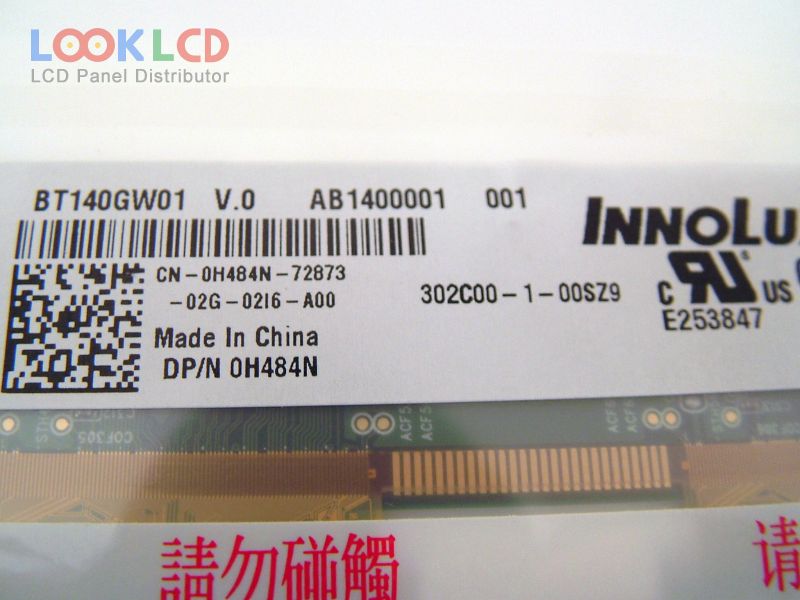

BT140GW01 V.0

BT140GW01 V.0
BT140GW01 V.0
BT140GW01 V.0
BT140GW01 V.0 thumb BT140GW01 V.0 thumb BT140GW01 V.0 thumb
Merek
Innolux
Ukuran
14.0
Aplikasi
NBPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
220
CR
600:1
Warna
262K
Lampu latar
WLED
Antarmuka
LVDS

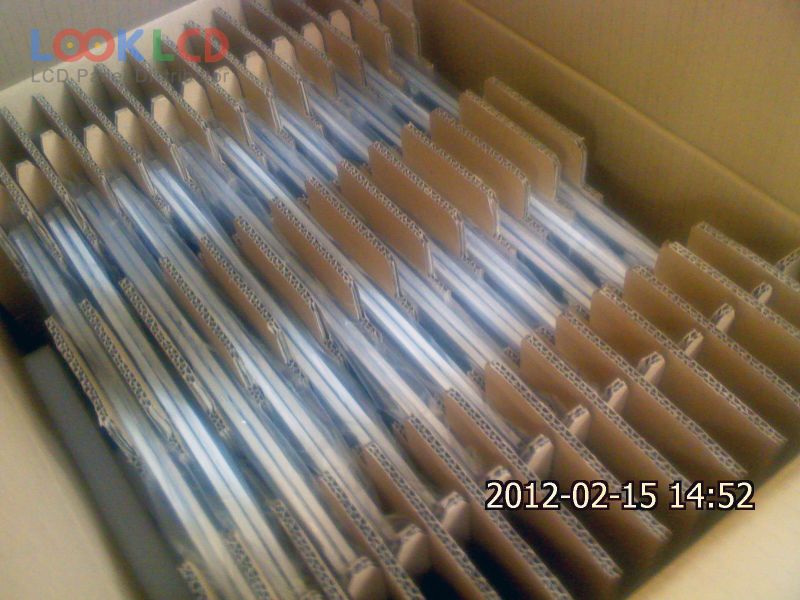

In Stock
15137
Spesifikasi

Nomor Bagian BT140GW01 V.0
MerekInnolux
Ukuran14.0
AplikasiNBPC
Resolusi1366×768
KomposisiLCM
Kecerahan220
CR600:1
Warna262K
Lampu latarWLED
AntarmukaLVDS
merek panelINNOLUX
model panelBT140GW01 V.0
tipe panel a-Si TFT-LCD , LCM
ukuran panel14.0 inch
resolusi1366(RGB)×768 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif309.399×173.952 mm
garis besar323.5×192×5.2 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan220 cd/m² (Typ.)
rasio kontras600:1 (Typ.)
menampilkan warna262K (6-bit), CIE193160%
waktu merespon8 (Typ.)(Tr+Td)
sudut pandang40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampuWLEDEmbedded (LED Driver)
antarmuka sinyalLVDS (1 ch, 6-bit), 40 pins
tegangan masukan3.3V (Typ.)
aplikasiNBPC
