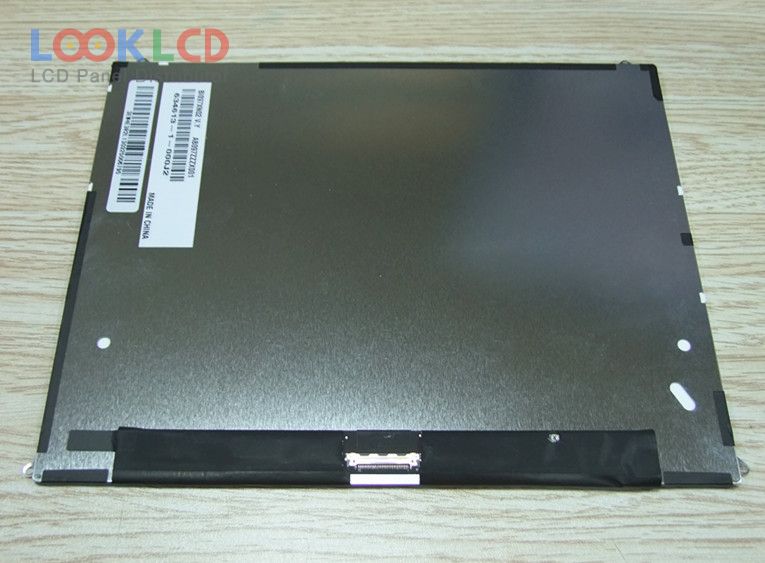

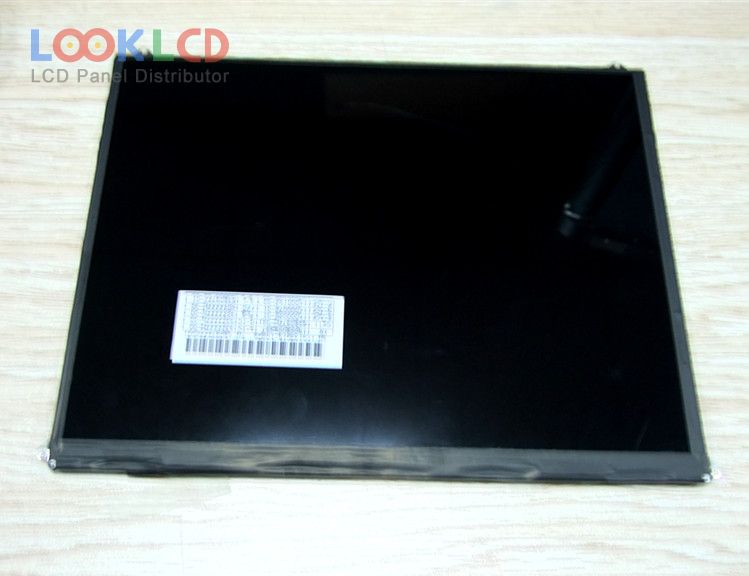

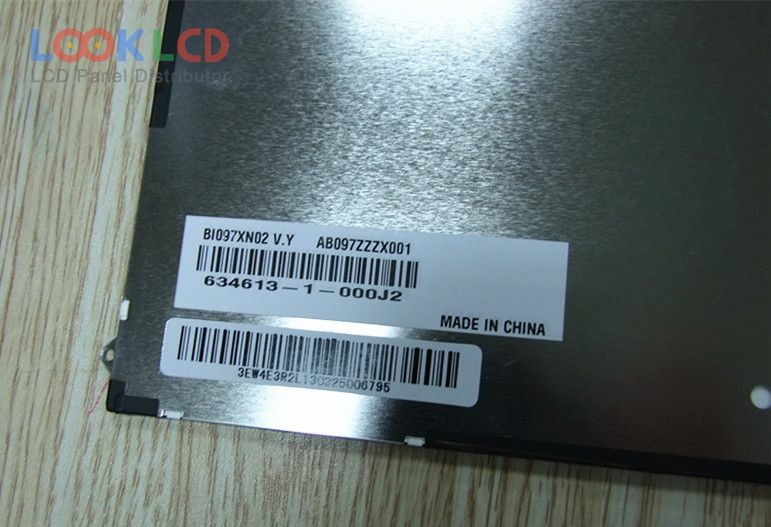

| Nomor Bagian | BI097XN02 V.Y |
| Merek | Innolux |
| Ukuran | 9.7 |
| Aplikasi | |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | CHIMEI INNOLUX |
| model panel | BI097XN02 V.Y |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 9.7 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mode tampilan | IPS, Normally Black, Transmissive |
| daerah aktif | 196.608×147.456 mm |
| garis besar | 210×164.25×5.65 mm |
| permukaan | |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193150% |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 6 stringsWLEDWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
