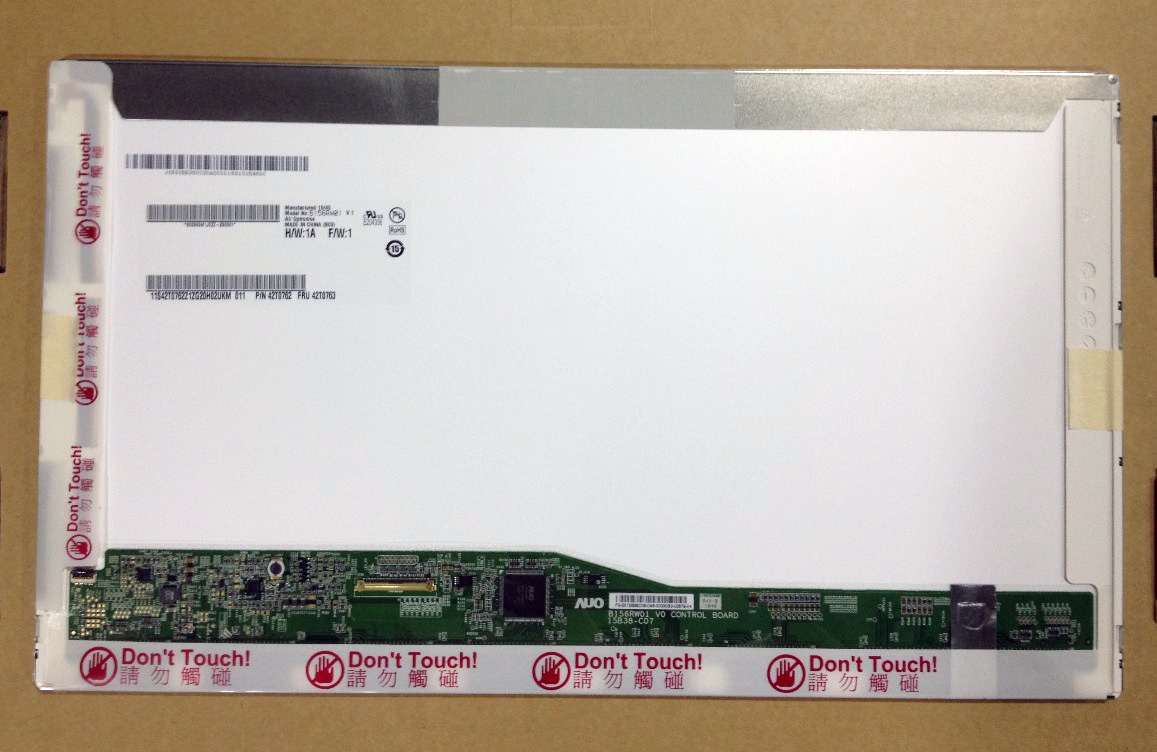

| Nomor Bagian | B156RW01 V1 HW1A |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1600×900 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | |
| merek panel | AUO |
| ukuran panel | 15.6" |
| resolusi | 1600(RGB)×900, HD+, 118PPI |
| area tampilan | 344.16(W)×193.59(H) mm |
| ukuran garis besar | 359.3(W)×209.5(H) ×5.7(D) mm |
| kecerahan | 220 cd/m² (Typ.) |
| sudut pandang | 70/70/60/60 (Typ.)(CR≥10) |
| tampilan terbaik di | 6 o'clock |
| menampilkan warna | 262K 60% NTSC |
| frekuensi | 60Hz |
| gaya bentuk | Wedge (PCBA Bent, T≥5.2mm) |
| model panel | B156RW01 V1 HW1A 1 Compatible |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 347.2(W)×196.5(H) mm |
| permukaan | Antiglare, Hard coating (3H) |
| rasio kontras | 400:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 2/6 (Typ.)(Tr/Td) |
| jenis lampu | WLED , 10K hours , With LED Driver |
| layar sentuh | Without |
| aplikasi | Laptop |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XW03 V2 | AUO | 15.6 | 1366×768 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
