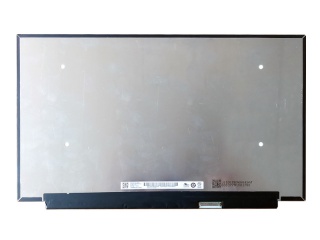

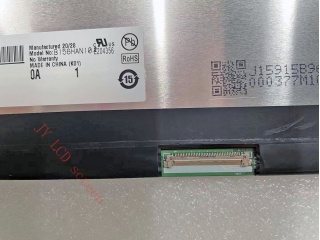

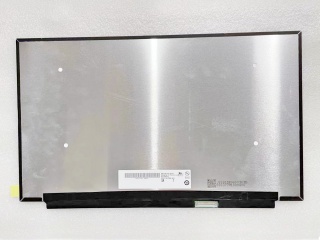

| Nomor Bagian | B156HAN10.2 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 1.07B |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | AUO |
| model | B156HAN10.2 |
| ukuran diagonal | 15.6 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 344.16(H)×193.59(V) mm |
| garis besar redup. | 350.66(H)×216.15(V) ×3(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 500 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 9 (Typ.)(Tr+Td); 3 (Typ.)(G to G)(OD) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | AHVA, Normally Black, Transmissive |
| warna pendukung | 1.07B 100% Adobe RGB |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop Gaming |
| kecepatan bingkai | 240Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
