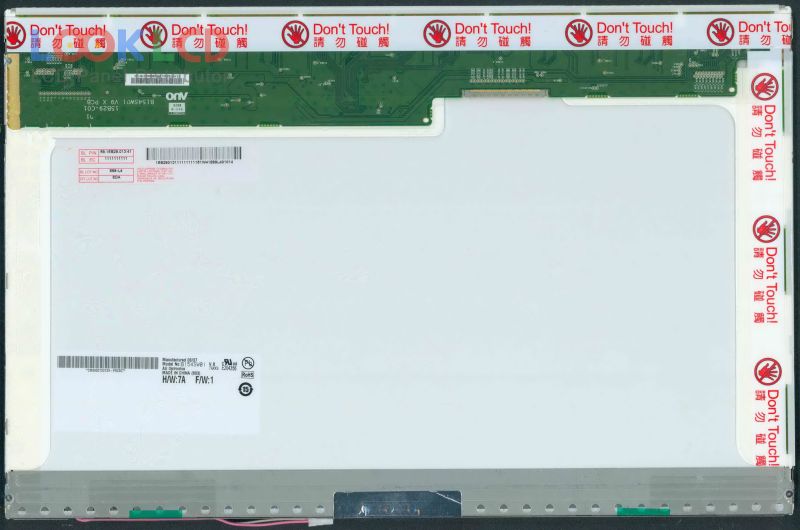

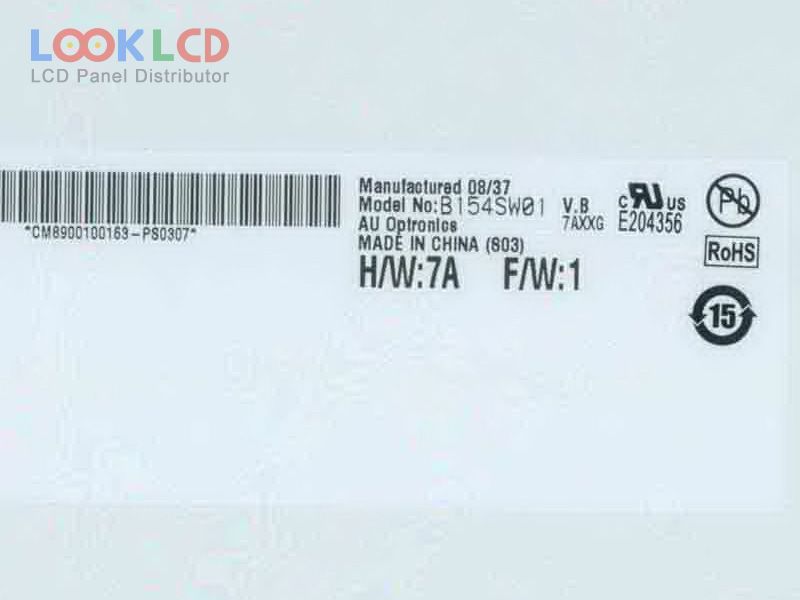

| Nomor Bagian | B154SW01 VB |
| Merek | AUO |
| Ukuran | 15.4 |
| Aplikasi | NBPC |
| Resolusi | 1680×1050 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | B154SW01 VB 7 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.4 inch |
| resolusi | 1680(RGB)×1050 , WSXGA+ |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 331.38×207.11 mm |
| garis besar | 344×222×6.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| rasio kontras | 400:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193145% |
| waktu merespon | 8 (Typ.)(Tr+Td) |
| sudut pandang | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
| B154EW01 V3 | AUO | 15.4 | 1280×800 |
| B154SW01 V0 | AUO | 15.4 | 1680×1050 |
| B154SW01 V1 | AUO | 15.4 | 1680×1050 |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| B154SW01 V9 | AUO | 15.4 | 1680×1050 |
| B154SW01 VB | AUO | 15.4 | 1680×1050 |
| B154SW02 V0 | AUO | 15.4 | 1680×1050 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| LTN154U1-L01 | Samsung | 15.4 | 1920×1200 |
| LTN154U1-L03 | Samsung | 15.4 | 1920×1200 |
| B133XW01 V0 | AUO | 13.3 | 1366×768 |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| B154PW04 V6 | AUO | 15.4 | 1440×900 |
| LP116WF1-SPA1 | LG Display | 11.6 | 1920×1080 |
| LP141WP2-TLB1 | LG Display | 14.1 | 1440×900 |
| LP154WX5-TLC1 | LG Display | 15.4 | 1280×800 |
| LTD111EWAS | TOSHIBA | 11.1 | 1366×768 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| LTN170BT06-G01 | Samsung | 17.0 | 1440×900 |
