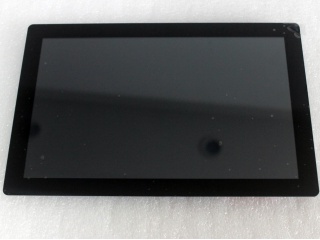

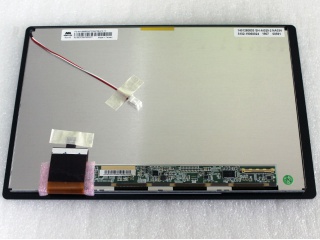

| Nomor Bagian | AM-1280800N2TZQW-T28H |
| Merek | AMPIRE |
| Ukuran | 10.1 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 7S6P |
| Antarmuka | |
| merek panel | AMPIRE |
| ukuran panel | 10.1" |
| resolusi | 1280(RGB)×800, WXGA, 149PPI |
| area tampilan | 216.96(W)×135.6(H) mm |
| ukuran garis besar | 247(W)×166(H) ×8.95(D) mm |
| kecerahan | 850 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 16.7M 45% NTSC |
| frekuensi | 60Hz |
| berat | 413g (Typ.) |
| model panel | AM-1280800N2TZQW-T28H |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 220.76(W)×140.4(H) mm |
| permukaan | - |
| rasio kontras | 800:1 (Typ.) (TM) |
| mode tampilan | IPS, Normally Black, Transmissive |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| jenis lampu | 7S6P WLED , 50K hours , Without Driver |
| layar sentuh | PCAP |
| aplikasi | Industrial Outdoor High Brightness |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-T48H | AMPIRE | 10.1 | 1280×800 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
