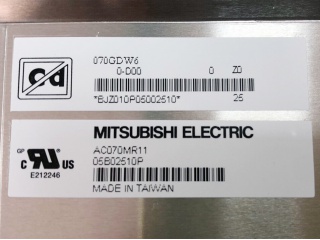

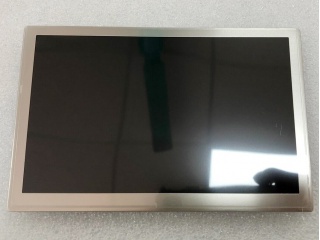

| Nomor Bagian | AC070MR11 |
| Merek | Mitsubishi |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K/16.7M |
| Lampu latar | 2 |
| Antarmuka | LVDS |
| merek panel | Mitsubishi |
| ukuran panel | 7.0" |
| resolusi | 800(RGB)×480, WVGA, 133PPI |
| area tampilan | 152.4(W)×91.44(H) mm |
| ukuran garis besar | 169.8(W)×109.7(H) ×9.3(D) mm |
| kecerahan | 1000 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 262K/16.7M |
| frekuensi | 60Hz |
| berat panel | 185g (Typ.) |
| antarmuka sinyal | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| model panel | AC070MR11 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 154.4(W)×93.44(H) mm |
| permukaan | Antiglare, Hard coating (3H) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| mode tampilan | SWV, Normally Black, Transmissive |
| waktu merespon | 15/15 (Typ.)(Tr/Td) |
| jenis lampu | 2 strings WLED , 50K hours , Without Driver |
| layar sentuh | Without |
| aplikasi | Industrial Outdoor High Brightness |
