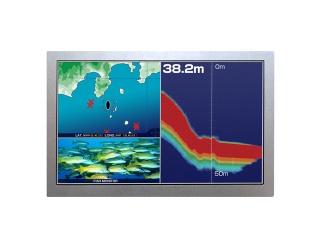

| Nomor Bagian | AA070TA11 |
| Merek | Mitsubishi |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 1280×768 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K/16.7M |
| Lampu latar | 2 |
| Antarmuka | |
| pabrikan | Mitsubishi |
| nama model | AA070TA11 |
| ukuran layar | 7.0 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1280(RGB)×768 (WXGA) 214PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 151.68 × 91.01 (H×V) |
| garis besar (mm) | 169.8 × 109.7 (H×V×D) |
| area bezel (mm) | 155.1 × 94.4 (H×V) |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 1000 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 88/88/88/88 (Typ.)(CR≥10) |
| tanggapan | 12/12 (Typ.)(Tr/Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | SWV, Normally Black, Transmissive |
| kedalaman warna | 262K/16.7M 49% NTSC |
| lampu latar | 2 strings WLED , 100K hours , No Driver |
| massa | 200g (Typ.) |
| digunakan untuk | Industrial Outdoor High Brightness Automotive Display |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| Storage Temp.: -40 ~ 80 °C Operating Temp.: -40 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
