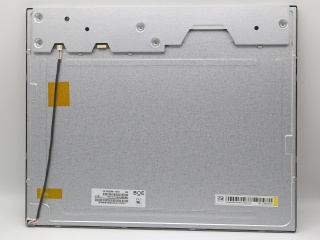

| Nomor Bagian | ZV190E0M-N10 |
| Merek | BOE |
| Ukuran | 19.0 |
| Aplikasi | Industrial |
| Resolusi | 1280×1024 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| pabrikan | BOE |
| nama model | ZV190E0M-N10 |
| ukuran layar | 19.0 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1280(RGB)×1024 (SXGA) 86PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 374.784 × 299.827 (H×V) |
| garis besar (mm) | 396 × 324 × 13.38 (H×V×D) |
| area bezel (mm) | 378.8 × 303 (H×V) |
| perlakuan | - |
| pencahayaan | 450 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tanggapan | 14 (Typ.)(G to G) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 90% NTSC |
| lampu latar | WLED , 50K hours , With LED Driver |
| massa | 1.80Kgs (Typ.) |
| digunakan untuk | Industrial |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (2 ch, 8-bit) , Connector 30 pins |
| sumber tegangan | 5.0V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 75 °C Operating Temp.: -20 ~ 70 °C |
