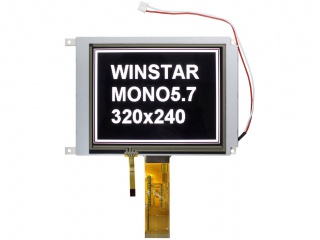

| Nomor Bagian | WF57STIACDNT0 |
| Merek | Winstar |
| Ukuran | 5.7 |
| Aplikasi | Industrial |
| Resolusi | 320×240 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | Grayscale |
| Lampu latar | WLED |
| Antarmuka | 8/16-bit |
| pabrikan | Winstar |
| nama model | WF57STIACDNT0 |
| ukuran layar | 5.7 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 320×240 (QVGA) 70PPI |
| pengaturan | Rectangle |
| area aktif (mm) | 115.2 × 86.4 (H×V) |
| garis besar (mm) | 160 × 109 × 9 (H×V×D) |
| area bezel (mm) | 118.2 × 87.4 (H×V) |
| perlakuan | Antiglare |
| pencahayaan | 700 cd/m² (Typ.) |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| sudut pandang | - |
| tanggapan | - |
| pemandangan bagus di | 12 o'clock |
| mode kerja | TN, Normally White, Transmissive |
| kedalaman warna | Grayscale |
| lampu latar | WLED , No Driver |
| massa | - |
| digunakan untuk | Industrial |
| tingkat penyegaran | - |
| layar sentuh | 4-wire Resistive Touch |
| jenis sinyal | 8/16-bit 6800/8080 parallel, 3/4-wire SPI , FPC 22 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
