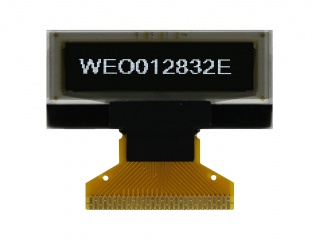

| Nomor Bagian | WEO012832EW |
| Merek | Winstar |
| Ukuran | 1.0 |
| Aplikasi | Handheld & PDA W |
| Resolusi | 128×32 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| pabrikan | Winstar |
| nama model | WEO012832EW |
| ukuran layar | 1.0 inch |
| tipe layar | OLED , PM-OLED |
| nomor piksel | 128×32 127PPI |
| pengaturan | Rectangle |
| area aktif (mm) | 25.58 × 6.38 (H×V) |
| garis besar (mm) | 33.4 × 14.5 × 1.68 (H×V×D) |
| area bezel (mm) | 27.68 × 7.8 (H×V) |
| perlakuan | - |
| sudut pandang | - |
| tanggapan | - |
| pemandangan bagus di | Symmetry |
| mode kerja | - |
| kedalaman warna | Mono(White) |
| lampu latar | self |
| massa | - |
| digunakan untuk | Handheld & PDA Wearable Instruments & Meters |
| tingkat penyegaran | - |
| layar sentuh | Without |
| daftar ic driver | Built-in COG SSD1306BZ |
| jenis sinyal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , 30 pins FPC |
| sumber tegangan | 3.0V (Typ.) |
