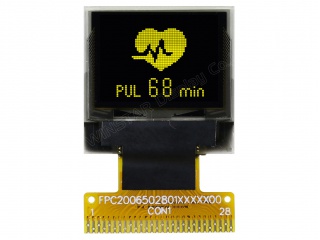

| Nomor Bagian | WEO006448AL |
| Merek | Winstar |
| Ukuran | 0.66 |
| Aplikasi | Wearable Healthcare |
| Resolusi | 64×48 |
| Komposisi | OLED, PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| pabrikan | Winstar |
| nama model | WEO006448AL |
| ukuran layar | 0.66 inch |
| tipe layar | OLED, PM-OLED |
| nomor piksel | 64×48 121PPI |
| pengaturan | Rectangle |
| area aktif (mm) | 13.42 × 10.06 (H×V) |
| garis besar (mm) | 18.46 × 18.1 × 1.46 (H×V×D) |
| area bezel (mm) | 15.42 × 12.06 (H×V) |
| perlakuan | - |
| sudut pandang | - |
| tanggapan | - |
| pemandangan bagus di | Symmetry |
| mode kerja | - |
| kedalaman warna | Mono(Yellow) |
| lampu latar | self |
| massa | - |
| digunakan untuk | Wearable Healthcare |
| tingkat penyegaran | - |
| layar sentuh | Without |
| daftar ic driver | Built-in COG SSD1306BZ |
| jenis sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , FPC 28 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 80 °C Operating Temp.: -40 ~ 80 °C |
