| Nomor Bagian | WEO002002AW |
| Merek | Winstar |
| Ukuran | 2.9 |
| Aplikasi | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(White) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| pabrikan | Winstar |
| ukuran layar | 2.9 inch |
| nomor karakter | 20 characters × 2 lines 6PPI |
| nada arang (mm) | 3.7×5.95 (H×V) |
| area aktif (mm) | 73.52 × 11.52 (H×V) |
| area bezel (mm) | 75.32 × 13.52 (H×V) |
| pencahayaan | - |
| sudut pandang | 88/88/88/88 |
| pemandangan bagus di | Symmetry |
| kedalaman warna | Mono(White) |
| massa | - |
| tingkat penyegaran | - |
| daftar ic driver | Built-in COG SSD1311M1Z |
| jenis sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| sumber tegangan | 3.3/5.0V (Typ.)(VDD) |
| nama model | WEO002002AW |
| tipe layar | OLED , PM-OLED |
| format char | 5×8 dots |
| ukuran arang (mm) | 3.22×5.57 (H×V) |

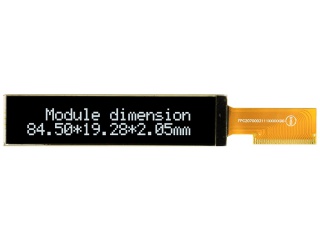

| garis besar (mm) | 84.5 × 19.2 × 2.15 (H×V×D) |
| perlakuan | - |
| rasio kontras | 2000 : 1 (Typ.) (TM) |
| tanggapan | 0.01 (Typ.) ms |
| mode kerja | - |
| lampu latar | self |
| digunakan untuk | Instruments & Meters |
| layar sentuh | Without |
