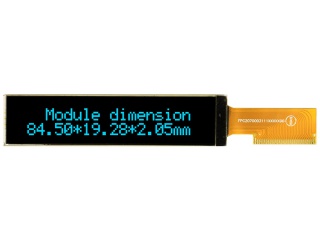

| Nomor Bagian | WEO002002AS |
| Merek | Winstar |
| Ukuran | 2.9 |
| Aplikasi | Instruments & Me |
| Resolusi | 20×26 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| merek panel | Winstar |
| model panel | WEO002002AS |
| ukuran panel | 2.9" |
| tipe panel | PM-OLED, OLED |
| format tampilan | 20 characters × 2 lines, 6PPI |
| format huruf | 5×8 dots |
| ukuran karakter | 3.22×5.57(W×H) mm |
| nada karakter | 3.7×5.95(W×H) mm |
| area tampilan | 73.52(W)×11.52(H) mm |
| bukaan bezel | 75.32(W)×13.52(H) mm |
| ukuran garis besar | 84.5(W)×19.2(H) ×2.15(D) mm |
| permukaan | - |
| kecerahan | - |
| rasio kontras | 2000:1 (Typ.) (TM) |
| sudut pandang | 88/88/88/88 |
| mode tampilan | - |
| tampilan terbaik di | Symmetry |
| waktu merespon | 0.01 (Typ.) |
| menampilkan warna | Mono(Blue) |
| jenis lampu | self |
| frekuensi | - |
| layar sentuh | Without |
| ic pengemudi | COG Built-in SSD1311M1Z |
| berat panel | - |
| aplikasi | Instruments & Meters |
| antarmuka sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| tegangan masukan | 3.3/5.0V (Typ.)(VDD) |
