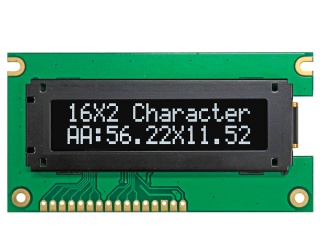

| Nomor Bagian | WEO001602GW |
| Merek | Winstar |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(White) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| pabrikan | Winstar |
| nama model | WEO001602GW |
| ukuran layar | 2.3 inch |
| tipe layar | OLED , PM-OLED |
| nomor karakter | 16 characters × 2 lines 7PPI |
| format char | 5×8 dots |
| nada arang (mm) | 3.55×5.95 (H×V) |
| ukuran arang (mm) | 2.97×5.57 (H×V) |
| area aktif (mm) | 56.22 × 11.52 (H×V) |
| garis besar (mm) | 79 × 44 × 9.67 (H×V×D) |
| area bezel (mm) | 58.22 × 13.52 (H×V) |
| perlakuan | - |
| pencahayaan | - |
| rasio kontras | 2000 : 1 (Typ.) (TM) |
| sudut pandang | 88/88/88/88 |
| tanggapan | 0.01 (Typ.) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | - |
| kedalaman warna | Mono(White) |
| lampu latar | self |
| massa | - |
| digunakan untuk | Instruments & Meters |
| tingkat penyegaran | - |
| layar sentuh | Without |
| daftar ic driver | Built-in COG SSD1311M1Z |
| jenis sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| sumber tegangan | 3.3/5.0V (Typ.)(VDD) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
