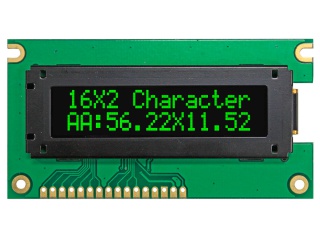

| Nomor Bagian | WEO001602GG |
| Merek | Winstar |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Me |
| Resolusi | 16×27 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| merek panel | Winstar |
| model panel | WEO001602GG |
| ukuran panel | 2.3" |
| tipe panel | PM-OLED, OLED |
| format tampilan | 16 characters × 2 lines, 7PPI |
| format huruf | 5×8 dots |
| ukuran karakter | 2.97×5.57(W×H) mm |
| nada karakter | 3.55×5.95(W×H) mm |
| area tampilan | 56.22(W)×11.52(H) mm |
| bukaan bezel | 58.22(W)×13.52(H) mm |
| ukuran garis besar | 79(W)×44(H) ×9.67(D) mm |
| permukaan | - |
| kecerahan | - |
| rasio kontras | 2000:1 (Typ.) (TM) |
| sudut pandang | 88/88/88/88 |
| mode tampilan | - |
| tampilan terbaik di | Symmetry |
| waktu merespon | 0.01 (Typ.) |
| menampilkan warna | Mono(Green) |
| jenis lampu | self |
| frekuensi | - |
| layar sentuh | Without |
| ic pengemudi | COGBuilt-in SSD1311M1Z |
| berat panel | - |
| aplikasi | Instruments & Meters |
| antarmuka sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| tegangan masukan | 3.3/5.0V (Typ.)(VDD) |
