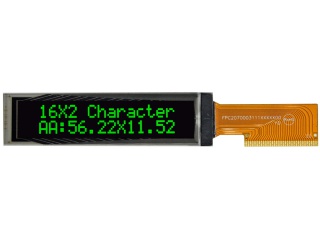

| Nomor Bagian | WEO001602CG |
| Merek | Winstar |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| merek | Winstar |
| model | WEO001602CG |
| ukuran diagonal | 2.3 inch |
| jenis | PM-OLED, OLED |
| format char | 5×8 dots |
| ukuran huruf | 2.97×5.57 mm |
| nada huruf | 3.55×5.95 mm |
| daerah aktif | 56.22(H)×11.52(V) mm |
| garis besar redup. | 68.5(H)×17.5(V) ×2.25(D) mm |
| daerah bezel | 58.22(H)×13.52(V) mm |
| perlakuan | - |
| pencahayaan | - |
| rasio kontras | 2000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 0.01 (Typ.) |
| sudut pandang | 88/88/88/88 |
| Modus operasi | - |
| warna pendukung | Mono(Green) |
| sumber cahaya | self |
| berat | - |
| dirancang untuk | Instruments & Meters |
| kecepatan bingkai | - |
| panel sentuh | Without |
| detail d-ic | COG Built-in SSD1311M1Z |
| tipe antarmuka | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 33 pins FPC |
| Sumber Daya listrik | 3.3/5.0V (Typ.)(VDD) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
