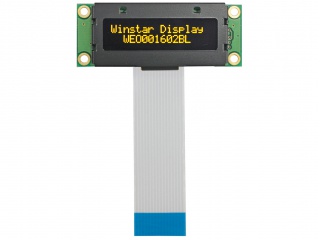

| Nomor Bagian | WEO001602BL |
| Merek | Winstar |
| Ukuran | 1.22 |
| Aplikasi | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| pabrikan | Winstar |
| ukuran layar | 1.22 inch |
| nomor karakter | 16 characters × 2 lines 13PPI |
| nada arang (mm) | 1.94×3.11 (H×V) |
| area aktif (mm) | 30.69 × 5.94 (H×V) |
| area bezel (mm) | 36 × 10 (H×V) |
| sudut pandang | - |
| pemandangan bagus di | Symmetry |
| kedalaman warna | Mono(Yellow) |
| massa | - |
| tingkat penyegaran | - |
| daftar ic driver | Built-in COG WS0012 |
| jenis sinyal | CPU/SPI , 16 pins FPC |
| sumber tegangan | 5.0V (Typ.) |
| nama model | WEO001602BL |
| tipe layar | OLED , PM-OLED |
| format char | 5×8 dots |
| ukuran arang (mm) | 1.66×2.84 (H×V) |
| garis besar (mm) | 53 × 20 × 7.6 (H×V×D) |
| perlakuan | - |
| tanggapan | - |
| mode kerja | - |
| lampu latar | self |
| digunakan untuk | Instruments & Meters |
| layar sentuh | Without |
