| Nomor Bagian | WEH002004AB |
| Merek | Winstar |
| Ukuran | 2.9 |
| Aplikasi | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | OLED, PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| pabrikan | Winstar |

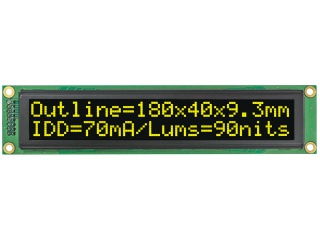

| nama model | WEH002004AB |
| ukuran layar | 2.9 inch |
| tipe layar | OLED, PM-OLED |
| nomor karakter | 20 characters × 4 lines 7PPI |
| format char | 5×8 dots |
| nada arang (mm) | 3.54×5.4 (H×V) |
| ukuran arang (mm) | 2.9×4.75 (H×V) |
| area aktif (mm) | 70.16 × 20.95 (H×V) |
| garis besar (mm) | 98 × 60 × 10 (H×V×D) |
| area bezel (mm) | 77 × 32 (H×V) |
| perlakuan | - |
| sudut pandang | - |
| tanggapan | - |
| pemandangan bagus di | Symmetry |
| mode kerja | - |
| kedalaman warna | Mono(Blue) |
| lampu latar | self |
| massa | - |
| digunakan untuk | Instruments & Meters |
| tingkat penyegaran | - |
| layar sentuh | Without |

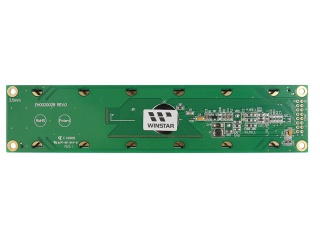

| daftar ic driver | Built-in COB WS0010 |
| jenis sinyal | CPU/SPI , Pad 16 pins |
| sumber tegangan | 5.0V (Typ.) |
