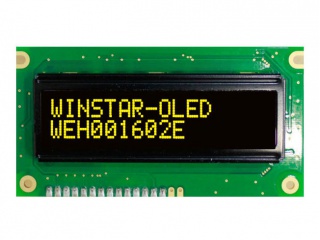

| Nomor Bagian | WEH001602EL |
| Merek | Winstar |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Me |
| Resolusi | 16×27 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek panel | Winstar |
| model panel | WEH001602EL |
| ukuran panel | 2.3" |
| tipe panel | PM-OLED, OLED |
| format tampilan | 16 characters × 2 lines, 7PPI |
| format huruf | 5×8 dots |
| ukuran karakter | 2.95×5.55(W×H) mm |
| nada karakter | 3.6×6.3(W×H) mm |
| area tampilan | 56.95(W)×11.85(H) mm |
| bukaan bezel | 66(W)×16(H) mm |
| ukuran garis besar | 84(W)×44(H) ×10(D) mm |
| permukaan | - |
| sudut pandang | - |
| mode tampilan | - |
| tampilan terbaik di | Symmetry |
| waktu merespon | - |
| menampilkan warna | Mono(Yellow) |
| jenis lampu | self |
| frekuensi | - |
| layar sentuh | Without |
| ic pengemudi | COB Built-in WS0010 |
| berat panel | - |
| aplikasi | Instruments & Meters |
| antarmuka sinyal | CPU/SPI , 16 pins Pad |
| tegangan masukan | 5.0V (Typ.) |
