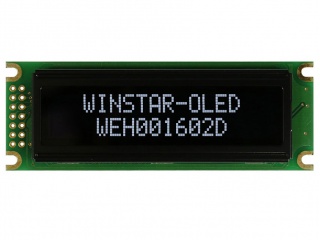

| Nomor Bagian | WEH001602DW |
| Merek | Winstar |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| merek | Winstar |
| ukuran diagonal | 2.3 inch |
| format char | 5×8 dots |
| ukuran huruf | 2.95×5.55 mm |
| daerah aktif | 56.95(H)×11.85(V) mm |
| daerah bezel | 66(H)×16(V) mm |
| arah pandangan | Symmetry |
| sudut pandang | - |
| warna pendukung | Mono(White) |
| berat | - |
| kecepatan bingkai | - |
| detail d-ic | COB Built-in WS0010 |
| tipe antarmuka | 8-bit 6800/8080 parallel , 14 pins Pad |
| Sumber Daya listrik | 5.0V (Typ.) |
| model | WEH001602DW |
| jenis | PM-OLED , OLED |
| nada huruf | 3.6×6.3 mm |
| garis besar redup. | 85(H)×30(V) ×10(D) mm |
| perlakuan | - |
| waktu merespon | - |
| Modus operasi | - |
| sumber cahaya | self |
| dirancang untuk | Instruments & Meters |
| panel sentuh | Without |
