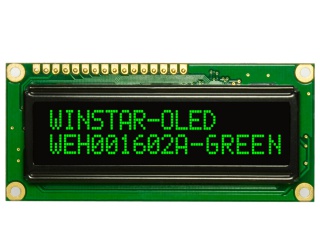

| Nomor Bagian | WEH001602AG |
| Merek | Winstar |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek | Winstar |
| ukuran diagonal | 2.3 inch |
| format char | 5×8 dots |
| ukuran huruf | 2.95×5.55 mm |
| daerah aktif | 56.95(H)×11.85(V) mm |
| daerah bezel | 66(H)×16(V) mm |
| pencahayaan | - |
| arah pandangan | Symmetry |
| sudut pandang | - |
| warna pendukung | Mono(Green) |
| berat | - |
| kecepatan bingkai | - |
| detail d-ic | COB Built-in WS0010 |
| tipe antarmuka | CPU/SPI , 16 pins Pad |
| Sumber Daya listrik | 5.0V (Typ.) |
| lingkungan | Operating Temperature: -40 ~ 80 °C - |
| model | WEH001602AG |
| jenis | PM-OLED , OLED |
| nada huruf | 3.6×6.3 mm |
| garis besar redup. | 80(H)×36(V) ×10(D) mm |
| perlakuan | - |
| rasio kontras | 2000:1 (Typ.) (TM) |
| waktu merespon | 0.01 (Typ.) |
| Modus operasi | - |
| sumber cahaya | self |
| dirancang untuk | Instruments & Meters |
| panel sentuh | Without |
