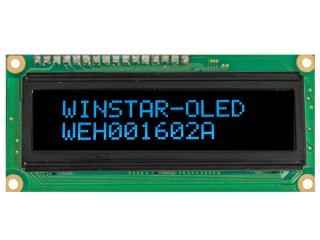

| Nomor Bagian | WEH001602AB |
| Merek | Winstar |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Meters |
| Resolusi | 16×27 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antarmuka | |
| merek panel | Winstar |
| ukuran panel | 2.3" |
| format tampilan | 16 characters × 2 lines, 7PPI |
| ukuran karakter | 2.95×5.55(W×H) mm |
| area tampilan | 56.95(W)×11.85(H) mm |
| ukuran garis besar | 80(W)×36(H) ×10(D) mm |
| kecerahan | - |
| sudut pandang | - |
| tampilan terbaik di | Symmetry |
| menampilkan warna | Mono(Blue) |
| frekuensi | - |
| berat | - |
| model panel | WEH001602AB |
| tipe panel | PM-OLED , OLED |
| format huruf | 5×8 dots |
| nada karakter | 3.6×6.3(W×H) mm |
| bukaan bezel | 66(W)×16(H) mm |
| permukaan | - |
| rasio kontras | 2000:1 (Typ.) (TM) |
| mode tampilan | - |
| waktu merespon | 0.01 (Typ.) |
| jenis lampu | self |
| layar sentuh | Without |
| aplikasi | Instruments & Meters |
