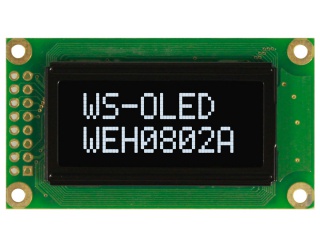

| Nomor Bagian | WEH000802AW |
| Merek | Winstar |
| Ukuran | 1.2 |
| Aplikasi | Instruments & Me |
| Resolusi | 8×26 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek panel | Winstar |
| model panel | WEH000802AW |
| ukuran panel | 1.2" |
| tipe panel | PM-OLED, OLED |
| format tampilan | 8 characters × 2 lines, 6PPI |
| format huruf | 5×8 dots |
| ukuran karakter | 2.96×5.56(W×H) mm |
| nada karakter | 3.6×6.3(W×H) mm |
| area tampilan | 28.16(W)×11.89(H) mm |
| bukaan bezel | 38(W)×16(H) mm |
| ukuran garis besar | 58(W)×32(H) ×10(D) mm |
| permukaan | - |
| sudut pandang | - |
| mode tampilan | - |
| tampilan terbaik di | Symmetry |
| waktu merespon | - |
| menampilkan warna | Mono(White) |
| jenis lampu | self |
| frekuensi | - |
| layar sentuh | Without |
| ic pengemudi | COBBuilt-in WS0010 |
| berat panel | - |
| aplikasi | Instruments & Meters |
| antarmuka sinyal | CPU/SPI , 16 pins Pad |
| tegangan masukan | 5.0V (Typ.) |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LS012B4DG01 | SHARP | 1.2 | 184×38 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| NVK-080SC002T-S-0200 | Neoview Kolon | 1.2 | 128×80 |
