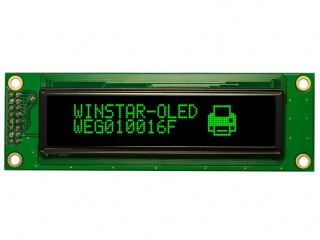

| Nomor Bagian | WEG010016FL |
| Merek | Winstar |
| Ukuran | 2.6 |
| Aplikasi | Instruments & Me |
| Resolusi | 100×16 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek panel | Winstar |
| model panel | WEG010016FL |
| ukuran panel | 2.6" |
| tipe panel | PM-OLED, OLED |
| resolusi | 100×16, 39PPI |
| format piksel | Rectangle |
| area tampilan | 64.95(W)×11.15(H) mm |
| bukaan bezel | 85(W)×18.6(H) mm |
| ukuran garis besar | 116(W)×37(H) ×9.8(D) mm |
| permukaan | - |
| sudut pandang | - |
| mode tampilan | - |
| tampilan terbaik di | Symmetry |
| waktu merespon | - |
| menampilkan warna | Mono(Yellow) |
| jenis lampu | self |
| frekuensi | - |
| layar sentuh | Without |
| ic pengemudi | COGBuilt-in WS0010 |
| berat panel | - |
| aplikasi | Instruments & Meters |
| antarmuka sinyal | CPU/SPI , 16 pins Pad |
| tegangan masukan | 5.0V (Typ.) |
| lingkungan | Operating Temp.: -40 ~ 80 °C ; - |
