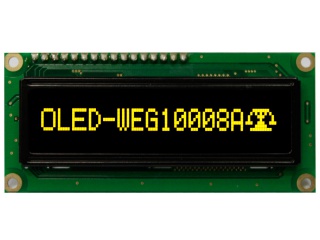

| Nomor Bagian | WEG010008AL |
| Merek | Winstar |
| Ukuran | 2.4 |
| Aplikasi | Instruments & Me |
| Resolusi | 100×8 |
| Komposisi | OLED, PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| pabrikan | Winstar |
| nama model | WEG010008AL |
| ukuran layar | 2.4 inch |
| tipe layar | OLED, PM-OLED |
| nomor piksel | 100×8 42PPI |
| pengaturan | Rectangle |
| area aktif (mm) | 59.95 × 6.35 (H×V) |
| garis besar (mm) | 80 × 36 × 10 (H×V×D) |
| area bezel (mm) | 66.0 × 16.0 (H×V) |
| perlakuan | - |
| sudut pandang | - |
| tanggapan | - |
| pemandangan bagus di | Symmetry |
| mode kerja | - |
| kedalaman warna | Mono(Yellow) |
| lampu latar | self |
| massa | - |
| digunakan untuk | Instruments & Meters |
| tingkat penyegaran | - |
| layar sentuh | Without |
| daftar ic driver | Built-in COB WS0010 |
| jenis sinyal | CPU/SPI , Pad 16 pins |
| sumber tegangan | 5.0V (Typ.) |
