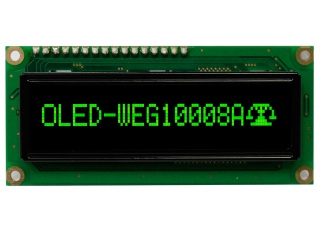

| Nomor Bagian | WEG010008AG |
| Merek | Winstar |
| Ukuran | 2.4 |
| Aplikasi | Instruments & Me |
| Resolusi | 100×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek | Winstar |
| model | WEG010008AG |
| ukuran diagonal | 2.4 inch |
| jenis | PM-OLED, OLED |
| format piksel | 100×8 42PPI |
| konfigurasi | Rectangle |
| daerah aktif | 59.95(H)×6.35(V) mm |
| garis besar redup. | 80(H)×36(V) ×10(D) mm |
| daerah bezel | 66.0(H)×16.0(V) mm |
| perlakuan | - |
| arah pandangan | Symmetry |
| waktu merespon | - |
| sudut pandang | - |
| Modus operasi | - |
| warna pendukung | Mono(Green) |
| sumber cahaya | self |
| berat | - |
| dirancang untuk | Instruments & Meters |
| kecepatan bingkai | - |
| panel sentuh | Without |
| detail d-ic | COB Built-in WS0010 |
| tipe antarmuka | CPU/SPI , 16 pins Pad |
| Sumber Daya listrik | 5.0V (Typ.) |
