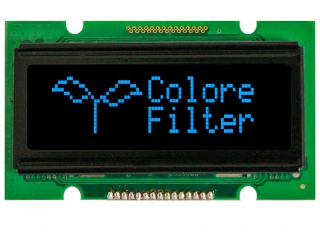

| Nomor Bagian | WEG007616AB |
| Merek | Winstar |
| Ukuran | 1.7 |
| Aplikasi | Instruments & Me |
| Resolusi | 76×16 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek | Winstar |
| model | WEG007616AB |
| ukuran diagonal | 1.7 inch |
| jenis | PM-OLED, OLED |
| format piksel | 76×16 45PPI |
| konfigurasi | Rectangle |
| daerah aktif | 41.7(H)×11.1(V) mm |
| garis besar redup. | 55.7(H)×32(V) ×11(D) mm |
| daerah bezel | 46(H)×14.5(V) mm |
| perlakuan | - |
| arah pandangan | Symmetry |
| waktu merespon | - |
| sudut pandang | - |
| Modus operasi | - |
| warna pendukung | Mono(Blue) |
| sumber cahaya | self |
| berat | - |
| dirancang untuk | Instruments & Meters |
| kecepatan bingkai | - |
| panel sentuh | Without |
| detail d-ic | COB Built-in WS0010 |
| tipe antarmuka | CPU/SPI , 15 pins Pad |
| Sumber Daya listrik | 5.0V (Typ.) |
