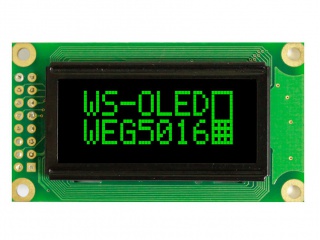

| Nomor Bagian | WEG005016AG |
| Merek | Winstar |
| Ukuran | 1.26 |
| Aplikasi | Instruments & Meters |
| Resolusi | 50×16 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek panel | Winstar |
| ukuran panel | 1.26" |
| resolusi | 50×16, 41PPI |
| area tampilan | 29.96(W)×11.16(H) mm |
| ukuran garis besar | 58(W)×32(H) ×10(D) mm |
| sudut pandang | - |
| tampilan terbaik di | Symmetry |
| menampilkan warna | Mono(Green) |
| frekuensi | - |
| ic pengemudi | COB Built-in WS0010 |
| berat panel | - |
| antarmuka sinyal | CPU/SPI , 16 pins Pad |
| tegangan masukan | 5.0V (Typ.) |
| model panel | WEG005016AG |
| tipe panel | PM-OLED , OLED |
| format piksel | Rectangle |
| bukaan bezel | 38(W)×16(H) mm |
| permukaan | - |
| mode tampilan | - |
| waktu merespon | - |
| jenis lampu | self |
| layar sentuh | Without |
| aplikasi | Instruments & Meters |
