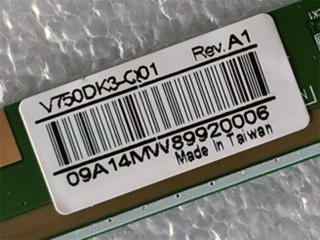

| Nomor Bagian | V750DK3-Q01 |
| Merek | Innolux |
| Ukuran | 75 |
| Aplikasi | TV Sets |
| Resolusi | 3840×2160 |
| Komposisi | CELL , a-Si TFT-LC |
| Kecerahan | |
| CR | 4000:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antarmuka | V-by-One |
| pabrikan | Innolux |
| ukuran layar | 75 inch |
| nomor piksel | 3840(RGB)×2160 (UHD) 59PPI |
| area aktif (mm) | 1650.24 × 928.26 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 0 cd/m² |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| ketebalan kaca | 0.50+0.50 mm |
| kedalaman warna | 1.07B |
| massa | 4.98±0.25Kgs |
| tingkat penyegaran | 120Hz |
| daftar ic driver | Suggest COF 12 source chips |
| jenis sinyal | V-by-One 16 lane , 92 pins Connector |
| sumber tegangan | 12V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | V750DK3-Q01 |
| tipe layar | CELL , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 1662.89 × 942.29 × 1.47 (H×V×D) |
| perlakuan | Antiglare (Haze 2%), Hard coating (2H), Reflection 2.0% (Typ.) |
| rasio kontras | 4000 : 1 (Typ.) (TM) |
| tanggapan | 6.5 (Typ.)(G to G) ms |
| mode kerja | Super MVA, Normally Black, Transmissive |
| keterusan | 4.8% (Typ.)(with Polarizer) |
| lampu latar | No B/L |
| digunakan untuk | TV Sets |
| layar sentuh | Without |
