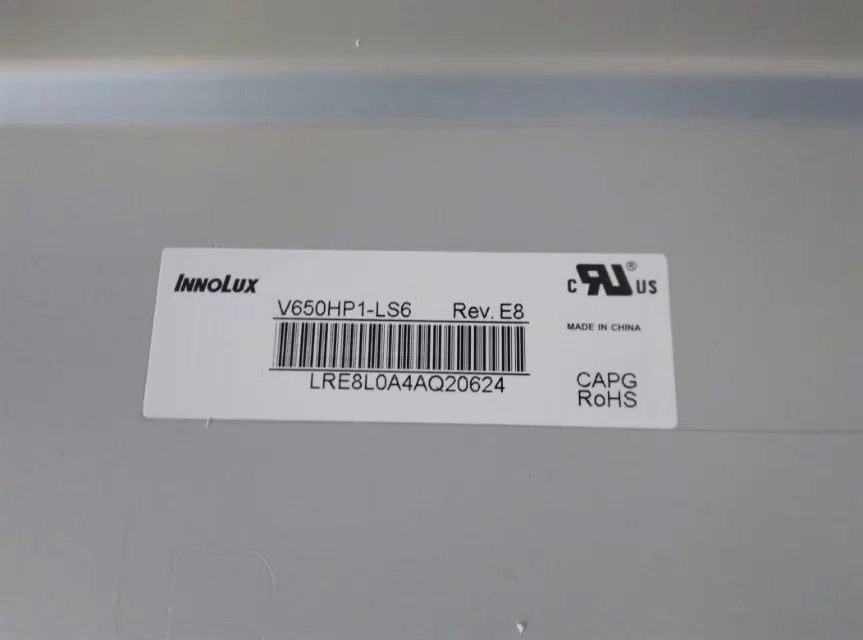

| Nomor Bagian | V650HP1-LS6 Rev.E8 |
| Merek | Innolux |
| Ukuran | 65 |
| Aplikasi | TV Sets |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 5000:1 |
| Warna | 1.07B |
| Lampu latar | 4 |
| Antarmuka | LVDS |
| pabrikan | Innolux |
| nama model | V650HP1-LS6 Rev.E8 |
| ukuran layar | 65 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 34PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 1428.48 × 803.52 (H×V) |
| garis besar (mm) | 1450.5 × 828.52 × 30.8 (H×V×D) |
| area bezel (mm) | 1435.5 × 810.52 (H×V) |
| perlakuan | Antiglare (Haze 1%), Hard coating (3H) |
| pencahayaan | 350 cd/m² (Typ.) |
| rasio kontras | 5000 : 1 (Typ.) (TM) |
| sudut pandang | 88/88/88/88 (Typ.)(CR≥20) |
| tanggapan | 6.5 (Typ.)(G to G) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | Super MVA, Normally Black, Transmissive |
| kedalaman warna | 1.07B 100% sRGB |
| lampu latar | 4 strings WLED , 30K hours , With LED Driver |
| massa | 23.0±1.2Kgs |
| digunakan untuk | TV Sets |
| tingkat penyegaran | 120Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (4 ch, 10-bit) , Connector 102 pins |
| sumber tegangan | 12.0V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
