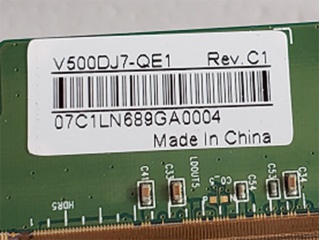

| Nomor Bagian | V500DJ7-QE1 |
| Merek | Innolux |
| Ukuran | 50 |
| Aplikasi | TV Sets |
| Resolusi | 3840×2160 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 4000:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antarmuka | V-by-One |
| merek panel | Innolux |
| model panel | V500DJ7-QE1 |
| ukuran panel | 50" |
| tipe panel | a-Si TFT-LCD, CELL |
| resolusi | 3840(RGB)×2160, UHD, 89PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 1095.84(W)×616.41(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 1106.84(W)×628.01(H) ×1.32(D) mm |
| permukaan | Antiglare (Haze 1%), Hard coating (3H) |
| kecerahan | 0 cd/m² |
| rasio kontras | 4000:1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| mode tampilan | Super MVA, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 9.5 (Typ.)(G to G) |
| kedalaman kaca | - |
| keterusan | 5.0% (Typ.)(with Polarizer) |
| menampilkan warna | 1.07B 70% NTSC |
| jenis lampu | No B/L |
| frekuensi | 60Hz |
| layar sentuh | Without |
| ic pengemudi | COF Built-in 12 source chips |
| berat panel | 2.11±0.20Kgs |
| aplikasi | TV Sets |
| antarmuka sinyal | V-by-One 8 lane , 51 pins Connector |
| tegangan masukan | 12.0V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| V500DJ2-KS5 | Innolux | 50 | 3840×2160 |
| V500DJ2-QS5 | Innolux | 50 | 3840×2160 |
| V500DJ4-QS1 | Innolux | 50 | 3840×2160 |
| V500DK1-KS1 | Innolux | 50 | 3840×2160 |
| V500DK1-KS2 Rev.HA | Innolux | 50 | 3840×2160 |
| V500DK1-KS5 | Innolux | 50 | 3840×2160 |
| V500DK1-LS1 | Innolux | 50 | 3840×2160 |
| V500DK2-KS1 Rev.C1 | Innolux | 50 | 3840×2160 |
| V500DK2-KS1 Rev.C8 | Innolux | 50 | 3840×2160 |
| V500HJ1-PE6 | Innolux | 50 | 1920×1080 |
