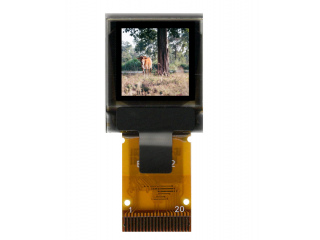

| Nomor Bagian | UG-6464TDDBG01 |
| Merek | WiseChip |
| Ukuran | 0.60 |
| Aplikasi | - |
| Resolusi | 64×64 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | 10000:1 |
| Warna | 65K |
| Lampu latar | self |
| Antarmuka | 4-wire |
| merek panel | WiseChip |
| ukuran panel | 0.60" |
| resolusi | 64(RGB)×64, 151PPI |
| area tampilan | 10.73(W)×10.73(H) mm |
| ukuran garis besar | 15(W)×17.5(H) ×1.3(D) mm |
| kecerahan | 200 cd/m² (Typ.) |
| sudut pandang | - |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 65K 60% NTSC |
| frekuensi | - |
| ic pengemudi | COG Built-in SSD1357 |
| berat panel | 0.66±0.06g |
| antarmuka sinyal | 4-wire SPI , 20 pins FPC |
| tegangan masukan | 3.0/12.0V (Typ.)(VDD/VCC) |
| lingkungan | Operating Temp.: -40 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |
| model panel | UG-6464TDDBG01 |
| tipe panel | PM-OLED , OLED |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 11.73(W)×11.73(H) mm |
| permukaan | - |
| rasio kontras | 10000:1 (Typ.) (TM) |
| mode tampilan | - |
| waktu merespon | - |
| jenis lampu | self , 10K hours |
| layar sentuh | Without |
| aplikasi |
