| Nomor Bagian | TX41D97VC1HAA |
| Merek | KOE |
| Ukuran | 16.1 |
| Aplikasi | NBPC |
| Resolusi | 1400×1050 |
| Komposisi | LCM |
| Kecerahan | 330 |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |

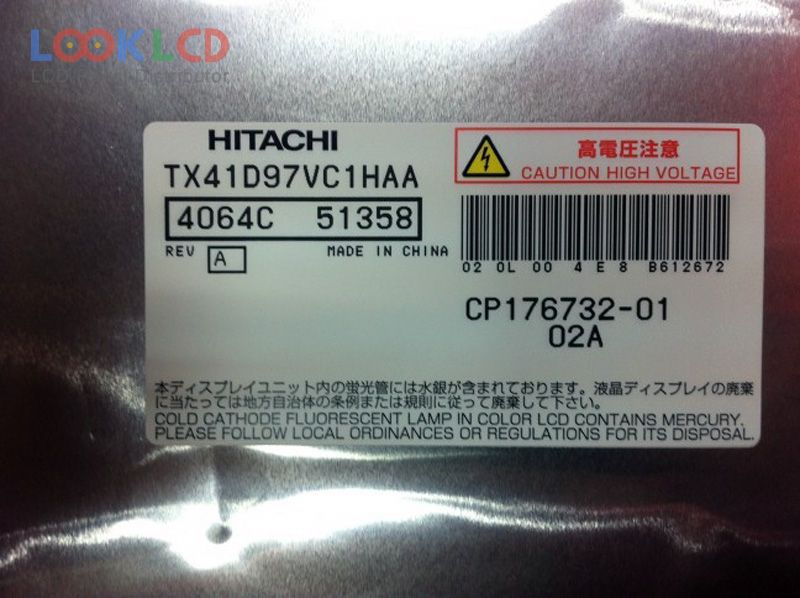

| merek panel | HITACHI |
| model panel | TX41D97VC1HAA |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 16.1 inch |
| resolusi | 1400(RGB)×1050 , SXGA+ |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 326.55×244.913 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (2H), Reflection 1.2% (Typ.) |
| kecerahan | 330 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 30/20 (Typ.)(Tr/Td) |
| sudut pandang | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |

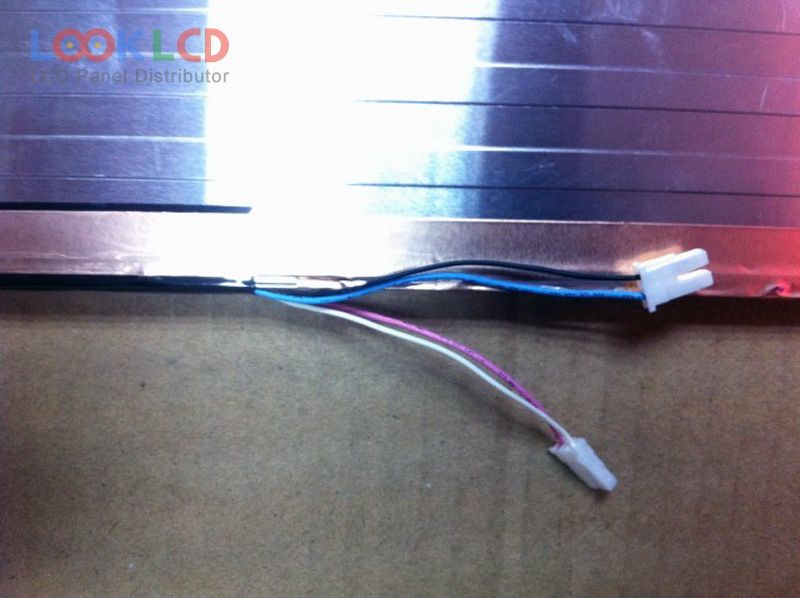

| jenis lampu | 2 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
