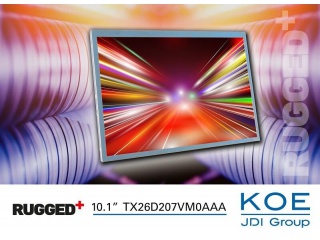

| Nomor Bagian | TX26D207VM0AAA |
| Merek | KOE |
| Ukuran | 10.1 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | KOE |
| ukuran diagonal | 10.1 inch |
| format piksel | 1280(RGB)×800 [WXGA] 149PPI |
| daerah aktif | 217.344(H)×135.84(V) mm |
| daerah bezel | 220.344(H)×138.838(V) mm |
| pencahayaan | 1000 cd/m² (Typ.) |
| arah pandangan | Symmetry |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| warna pendukung | 16.7M 65% NTSC |
| berat | 340g (Typ.) |
| kecepatan bingkai | 60Hz |
| tipe antarmuka | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| model | TX26D207VM0AAA |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 231(H)×153.5(V) ×11.07(D) mm |
| perlakuan | - |
| rasio kontras | 1500:1 (Typ.) (TM) |
| waktu merespon | 25 (Max.)(Tr+Tf) |
| Modus operasi | IPS, Normally Black, Transmissive |
| sumber cahaya | WLED , 70K hours , With LED Driver |
| dirancang untuk | Industrial Outdoor High Brightness Automotive Display |
| panel sentuh | Without |
