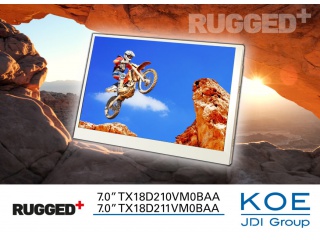

| Nomor Bagian | TX18D210VM0BAA |
| Merek | KOE |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | LCM , LTPS TFT-LCD |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | Parallel |
| pabrikan | KOE |
| ukuran layar | 7.0 inch |
| nomor piksel | 800(RGB)×480 (WVGA) 133PPI |
| area aktif (mm) | 152.4 × 91.44 (H×V) |
| area bezel (mm) | 156.2 × 94.5 (H×V) |
| pencahayaan | 800 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 262K 72% NTSC |
| massa | 214g (Typ.) |
| tingkat penyegaran | 60Hz |
| jenis sinyal | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| nama model | TX18D210VM0BAA |
| tipe layar | LCM , LTPS TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 167.7 × 109.5 × 20.3 (H×V×D) |
| perlakuan | - |
| rasio kontras | 1200 : 1 (Typ.) (TM) |
| tanggapan | 30 (Typ.)(Tr+Td) ms |
| mode kerja | IPS, Normally Black, Transmissive |
| lampu latar | WLED , 50K hours , With LED Driver |
| digunakan untuk | Industrial Outdoor High Brightness Automotive Display |
| layar sentuh | Without |
