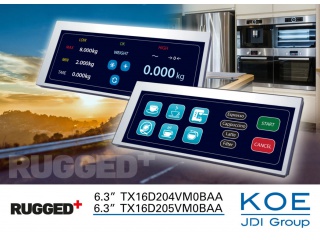

| Nomor Bagian | TX16D204VM0BAA |
| Merek | KOE |
| Ukuran | 6.3 |
| Aplikasi | Industrial |
| Resolusi | 800×280 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K |
| Lampu latar | 3S3P |
| Antarmuka | CMOS |
| merek panel | KOE |
| ukuran panel | 6.3" |
| resolusi | 800(RGB)×280, 135PPI |
| area tampilan | 150(W)×52.5(H) mm |
| ukuran garis besar | 167(W)×69(H) ×9.5(D) mm |
| kecerahan | 500 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 262K 52% NTSC |
| frekuensi | 60Hz |
| berat panel | 107g (Typ.) |
| antarmuka sinyal | CMOS (1 ch, 6-bit) , 50 pins FPC |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| model panel | TX16D204VM0BAA |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 153(W)×55.5(H) mm |
| permukaan | - |
| rasio kontras | 1000:1 (Typ.) (TM) |
| mode tampilan | IPS, Normally Black, Transmissive |
| waktu merespon | 40 (Typ.)(Tr+Td) |
| jenis lampu | 3S3P WLED , 50K hours , Without Driver |
| layar sentuh | Without |
| aplikasi | Industrial |
