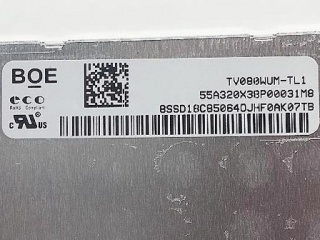

| Nomor Bagian | TV080WUM-TL1 |
| Merek | BOE |
| Ukuran | 8.0 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1200×1920 |
| Komposisi | a-Si TFT-LCD, Assemb |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek | BOE |
| model | TV080WUM-TL1 |
| ukuran diagonal | 8.0 inch |
| jenis | a-Si TFT-LCD, Assembly |
| format piksel | 1200(RGB)×1920 [WUXGA] 283PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 107.64(H)×172.224(V) mm |
| garis besar redup. | 117.7(H)×193.84(V) ×5.5(D) mm |
| daerah bezel | - |
| perlakuan | Hard coating |
| pencahayaan | 350 cd/m² (Typ.) |
| rasio kontras | 900:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| Modus operasi | HADS, Normally Black, Transmissive |
| warna pendukung | 16.7M 58% NTSC |
| sumber cahaya | WLED [6S4P] , W/O Driver |
| berat | 155g (Max.) |
| dirancang untuk | Pad & Tablet |
| kecepatan bingkai | 60Hz |
| panel sentuh | On-Cell Touch |
| Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
