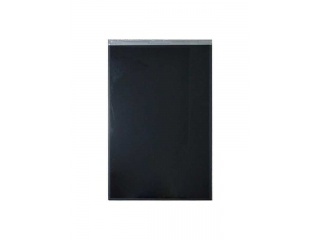

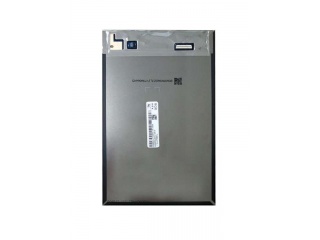

| Nomor Bagian | TV080WUM-NL1 |
| Merek | BOE |
| Ukuran | 8.0 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1200×1920 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S3P |
| Antarmuka | MIPI |
| pabrikan | BOE |
| nama model | TV080WUM-NL1 |
| ukuran layar | 8.0 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1200(RGB)×1920 (WUXGA) 283PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 107.64 × 172.224 (H×V) |
| garis besar (mm) | 114.6 × 183.75 × 3.75 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Hard coating |
| pencahayaan | 400 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 63% NTSC |
| lampu latar | 8S3P WLED , 15K hours , No Driver |
| massa | 85.0g (Max.) |
| digunakan untuk | Pad & Tablet |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | MIPI (4 data lanes) , 45 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| DJ080PA-01C | Innolux | 8.0 | |
| LB080WV4-TD02 | LG Display | 8.0 | 800×480 |
| LM64C21P | SHARP | 8.0 | 640×480 |
| LM64P122 | SHARP | 8.0 | 640×480 |
| LT080EE04100 | TOSHIBA | 8.0 | 1600×768 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| PD080SL2 | E Ink | 8.0 | 800×600 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
