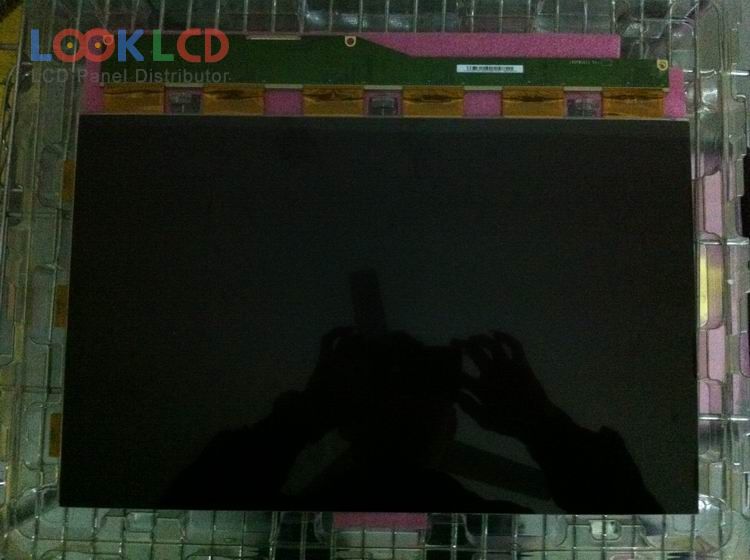

| Nomor Bagian | TM190MFS01 |
| Merek | Tianma |
| Ukuran | 19.0 |
| Aplikasi | DMPC |
| Resolusi | 1440×900 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antarmuka | LVDS |
| merek panel | TIANMA |
| model panel | TM190MFS01 |
| tipe panel | a-Si TFT-LCD , CELL |
| ukuran panel | 19.0 inch |
| resolusi | 1440(RGB)×900 , WXGA+ |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 408.24×255.15 mm |
| permukaan | |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 16.7M (6-bit + Hi-FRC), CIE193172% |
| waktu merespon | 1.3/3.7 (Typ.)(Tr/Td) |
| sudut pandang | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
