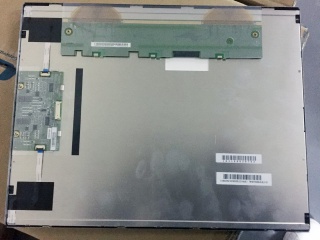

| Nomor Bagian | TM150TDSG59 |
| Merek | AVIC |
| Ukuran | 15.0 |
| Aplikasi | Industrial |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 600:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | AVIC |
| ukuran panel | 15.0" |
| resolusi | 1024(RGB)×768, XGA, 85PPI |
| area tampilan | 304.128(W)×228.096(H) mm |
| kecerahan | - |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| tampilan terbaik di | - |
| menampilkan warna | 262K/16.7M 60% NTSC |
| frekuensi | 60Hz |
| berat panel | - |
| antarmuka sinyal | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -20 ~ 65 °C |
| model panel | TM150TDSG59 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 600:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 3/5 (Typ.)(Tr/Td) |
| jenis lampu | WLED , 30K hours |
| layar sentuh | Without |
| aplikasi | Industrial |
