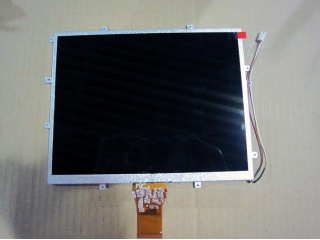

| Nomor Bagian | TM097TDH01-00 |
| Merek | AVIC |
| Ukuran | 9.7 |
| Aplikasi | Industrial |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek | AVIC |
| ukuran diagonal | 9.7 inch |
| format piksel | 1024(RGB)×768 [XGA] 132PPI |
| daerah aktif | 196.608(H)×147.456(V) mm |
| daerah bezel | 200.91(H)×152.26(V) mm |
| pencahayaan | 220 cd/m² (Typ.) |
| arah pandangan | 3 o'clock |
| sudut pandang | 70/60/70/70 (Typ.)(CR≥10) |
| warna pendukung | 262K/16.7M 50% NTSC |
| berat | 256g |
| kecepatan bingkai | 60Hz |
| model | TM097TDH01-00 |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 210.2(H)×166.2(V) ×3.96(D) mm |
| perlakuan | Antiglare, Hard coating (3H) |
| rasio kontras | 500:1 (Typ.) (TM) |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| Modus operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED [6S6P] , 15K hours , W/O Driver |
| dirancang untuk | Industrial |
| panel sentuh | Without |
| BF097XN | Innolux | 9.7 | 1024×768 |
| ED097OC1 | E Ink | 9.7 | 1200×825 |
| LP097QX1-SPC3 | LG Display | 9.7 | 2048×1536 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LP097X02-SLQA | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
