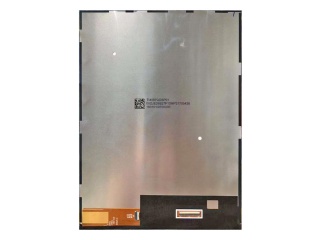

| Nomor Bagian | TM097QDSP01 |
| Merek | TIANMA |
| Ukuran | 9.7 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1536×2048 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 6S6P |
| Antarmuka | MIPI |
| pabrikan | TIANMA |
| nama model | TM097QDSP01 |
| ukuran layar | 9.7 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1536(RGB)×2048 (QXGA) 264PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 147.456 × 196.608 (H×V) |
| garis besar (mm) | 154.016 × 207.83 × 3.75 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Hard coating |
| pencahayaan | 460 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | SFT, Normally Black, Transmissive |
| kedalaman warna | 16.7M 72% NTSC |
| lampu latar | 6S6P WLED , No Driver |
| massa | 110g (Typ.) |
| digunakan untuk | Pad & Tablet |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | MIPI (2 ch, 4 data lanes) , 61 pins Connector |
| sumber tegangan | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) |
| maks. peringkat | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| BF097XN | Innolux | 9.7 | 1024×768 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
