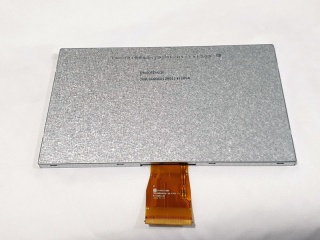

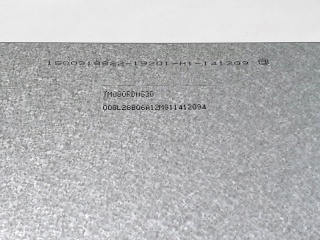

| Nomor Bagian | TM080RDHG30 |
| Merek | TIANMA |
| Ukuran | 8.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | 3S12P |
| Antarmuka | |
| merek panel | TIANMA |
| ukuran panel | 8.0" |
| resolusi | 800(RGB)×480, WVGA, 116PPI |
| area tampilan | 176.64(W)×99.36(H) mm |
| kecerahan | 450 cd/m² (Typ.) |
| sudut pandang | 70/70/60/70 (Typ.)(CR≥10) |
| tampilan terbaik di | - |
| menampilkan warna | 262K/16.7M |
| frekuensi | 60Hz |
| berat | - |
| model panel | TM080RDHG30 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 500:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| jenis lampu | 3S12P WLED , 20K hours , Without Driver |
| layar sentuh | Without |
| aplikasi | Industrial |
