| Nomor Bagian | TM080RBHG30 |
| Merek | TIANMA |
| Ukuran | 8.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | 3S12P |
| Antarmuka | |
| pabrikan | TIANMA |

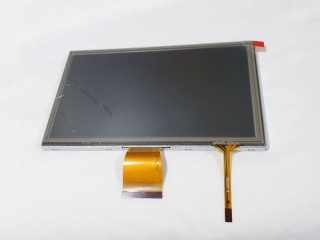

| nama model | TM080RBHG30 |
| ukuran layar | 8.0 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 800(RGB)×480 (WVGA) 116PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 176.64 × 99.36 (H×V) |
| garis besar (mm) | 192.8 × 116.9 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 375 cd/m² (Typ.) |
| rasio kontras | 500 : 1 (Typ.) (TM) |
| sudut pandang | 70/70/60/70 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | - |
| mode kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K/16.7M 65% NTSC |
| lampu latar | 3S12P WLED , 20K hours , No Driver |
| massa | 280g (Typ.) |
| digunakan untuk | Industrial |
| tingkat penyegaran | 60Hz |
| layar sentuh | 4-wire Resistive Touch |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
