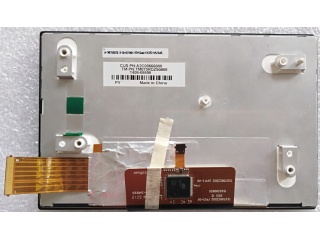

| Nomor Bagian | TM070RDZ50 |
| Merek | TIANMA |
| Ukuran | 7.0 |
| Aplikasi | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | |
| merek | TIANMA |
| ukuran diagonal | 7.0 inch |
| format piksel | 800(RGB)×480 [WVGA] 133PPI |
| daerah aktif | 157.2(H)×82.32(V) mm |
| pencahayaan | - |
| arah pandangan | - |
| sudut pandang | 70/70/60/70 (Typ.)(CR≥10) |
| warna pendukung | 262K |
| berat | - |
| kecepatan bingkai | 60Hz |
| model | TM070RDZ50 |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | - |
| rasio kontras | 400:1 (Typ.) (TM) |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| Modus operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED |
| dirancang untuk | Automotive Display |
| panel sentuh | PCAP |
