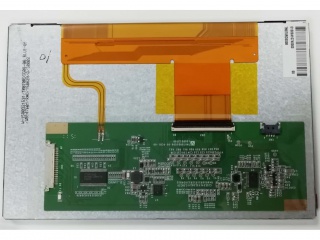

| Nomor Bagian | TM070RDSG08 |
| Merek | TIANMA |
| Ukuran | 7.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | 10S3P |
| Antarmuka | LVDS |
| pabrikan | TIANMA |
| ukuran layar | 7.0 inch |
| nomor piksel | 800(RGB)×480 (WVGA) 133PPI |
| area aktif (mm) | 152.4 × 91.44 (H×V) |
| area bezel (mm) | 155.4 × 94.44 (H×V) |
| pencahayaan | 500 cd/m² (Typ.) |
| sudut pandang | 70/70/70/60 (Typ.)(CR≥10) |
| pemandangan bagus di | - |
| kedalaman warna | 262K/16.7M 70% NTSC |
| massa | 176g (Typ.) |
| tingkat penyegaran | 60Hz |
| jenis sinyal | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | TM070RDSG08 |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 166.4 × 107.2 × 8.5 (H×V×D) |
| perlakuan | Antiglare |
| rasio kontras | 500 : 1 (Typ.) (TM) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| mode kerja | TN, Normally White, Transmissive |
| lampu latar | 10S3P WLED , 50K hours , With LED Driver |
| digunakan untuk | Industrial |
| layar sentuh | Without |
