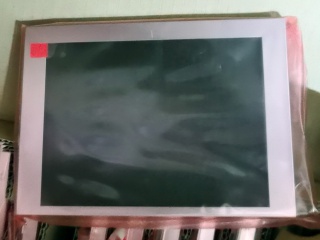

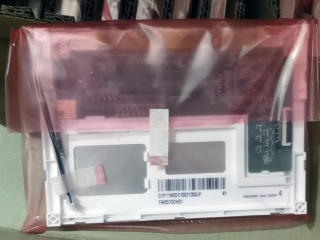

| Nomor Bagian | TM057QDH01-41 |
| Merek | TIANMA |
| Ukuran | 5.7 |
| Aplikasi | Industrial |
| Resolusi | 640×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 7S3P |
| Antarmuka | Parallel |
| pabrikan | TIANMA |
| nama model | TM057QDH01-41 |
| ukuran layar | 5.7 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 640(RGB)×480 (VGA) 141PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 115.2 × 86.4 (H×V) |
| garis besar (mm) | 144 × 104.6 × 12.8 (H×V×D) |
| area bezel (mm) | 118.2 × 89.4 (H×V) |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 400 cd/m² (Typ.) |
| rasio kontras | 500 : 1 (Typ.) (TM) |
| sudut pandang | 70/70/70/60 (Typ.)(CR≥10) |
| tanggapan | 20 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | 6 o'clock |
| mode kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 50% NTSC |
| lampu latar | 7S3P WLED , 50K hours , No Driver |
| massa | 155g |
| digunakan untuk | Industrial |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
