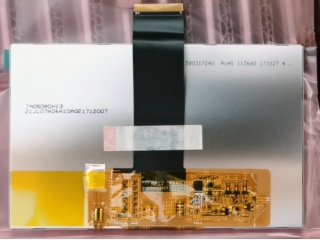

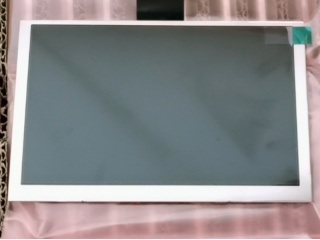

| Nomor Bagian | TM050RDH13 |
| Merek | TIANMA |
| Ukuran | 5.0 |
| Aplikasi | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek panel | TIANMA |
| ukuran panel | 5.0" |
| resolusi | 800(RGB)×480, WVGA, 188PPI |
| area tampilan | 108(W)×64.8(H) mm |
| kecerahan | - |
| sudut pandang | - |
| tampilan terbaik di | - |
| menampilkan warna | 16.7M 50% NTSC |
| frekuensi | 60Hz |
| berat | - |
| model panel | TM050RDH13 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 500:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| jenis lampu | WLED |
| layar sentuh | Without |
| aplikasi | Automotive Display |
