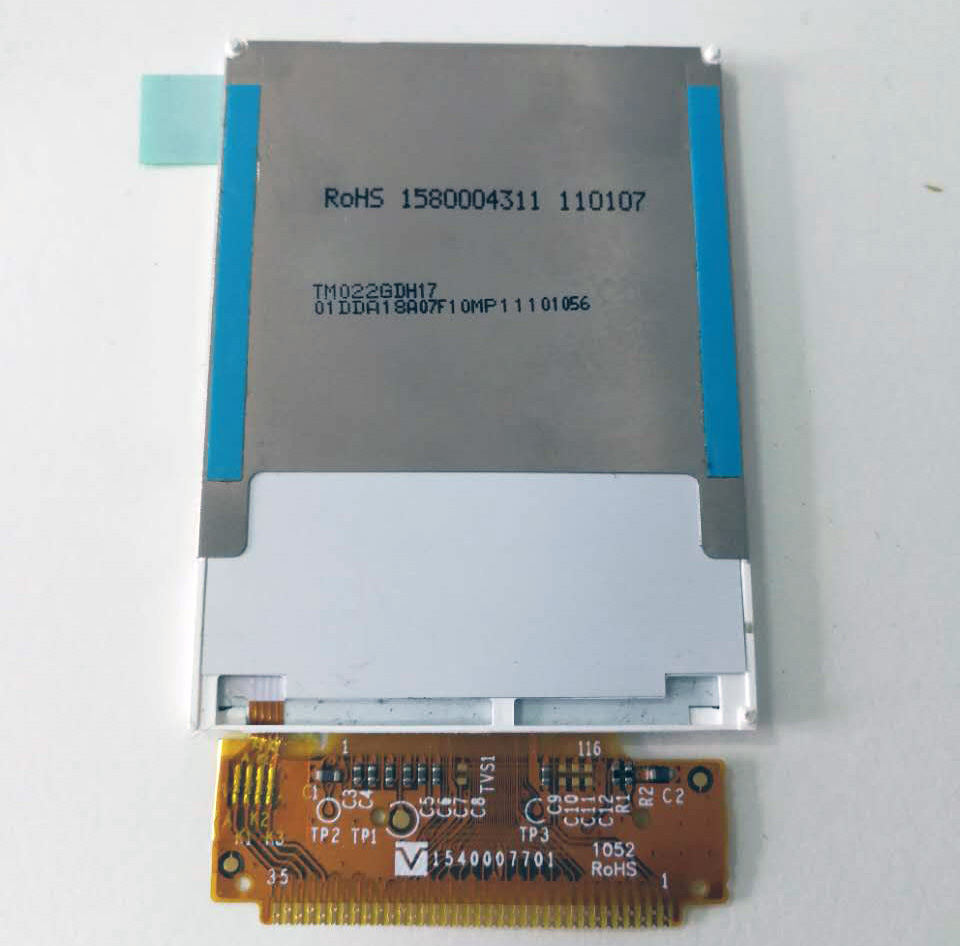

| Nomor Bagian | TM022GDH17 |
| Merek | TIANMA |
| Ukuran | 2.2 |
| Aplikasi | Mobile Phone |
| Resolusi | 176×220 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | |
| Warna | 65K/262K |
| Lampu latar | WLED |
| Antarmuka | |
| merek panel | TIANMA |
| ukuran panel | 2.2" |
| resolusi | 176(RGB)×220, QCIF+, 128PPI |
| area tampilan | 34.848(W)×43.56(H) mm |
| sudut pandang | - |
| tampilan terbaik di | - |
| menampilkan warna | 65K/262K |
| frekuensi | - |
| berat | TBD |
| model panel | TM022GDH17 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | - |
| jenis lampu | WLED |
| layar sentuh | Without |
| aplikasi | Mobile Phone |
